About:

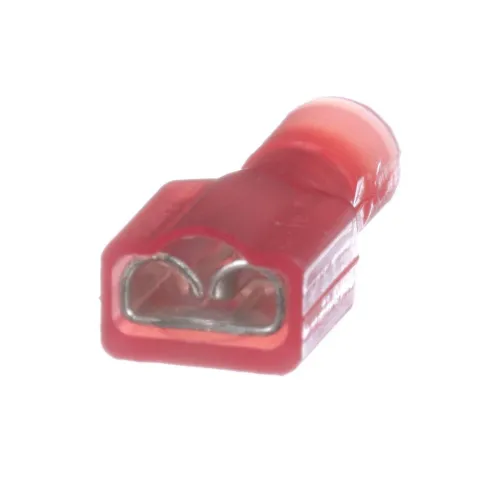

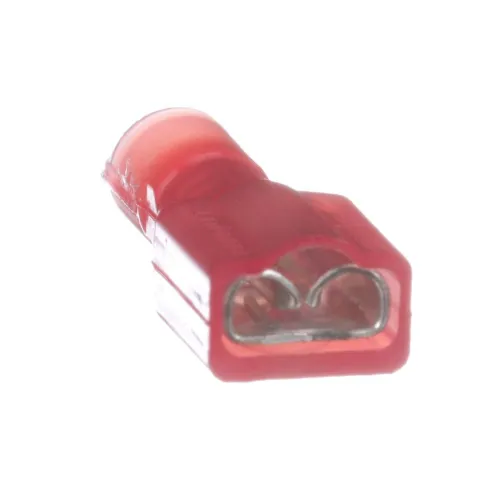

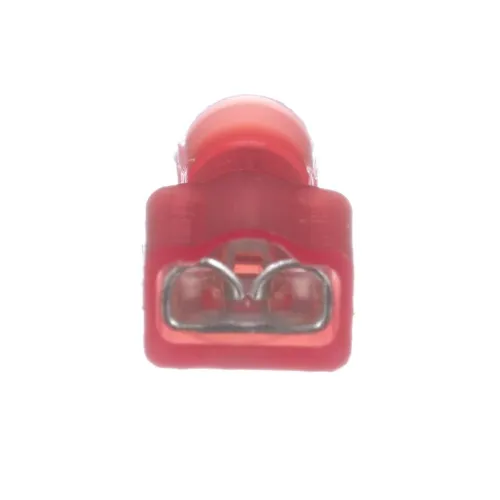

This product is a female disconnect terminal, specifically constructed to establish solid electrical connections. Given its AWG (American Wire Gauge) specification of 22-18, it's intended for small to medium wire diameters. Manufactured under the "Pan-Term" brand name, this component is available in a pack of 1000 units. Its nylon insulation offers an added layer of safety by preventing short circuits and accidental metallic contacts.

Also Known As:

• Female Slip-On Connector
• Spade Terminal
• Quick Disconnect Terminal

Common Applications:

• Domestic electrical appliances
• Industrial machinery and equipment wiring
• Automotive electrical systems
• Control panel and switchgear connections
• Interconnections within electronic devices

Standards:

• CSA (Canadian Standards Association)
• UL (Underwriters Laboratories)
• RoHS (Restriction of Hazardous Substances) compliance

Construction:

• Connector Body: Typically crafted from brass or a similar conductive material, ensuring optimal electrical conduction.

• Insulation: Utilizes nylon for electrical insulation and a certain degree of mechanical protection.

• Plating: The connector body might have a tin-plating to combat corrosion and to ensure a durable and consistent connection.

Features:

• Nylon Insulation: Offers protection against potential short circuits and unintended metallic contacts.

• User-friendly Crimping: Designed for a hassle-free and sturdy wire attachment, predominantly using a crimping tool.

• Durability: Engineered to withstand wear and tear, assuring longevity in connections.

• Wide Operational Temperature Range: Capable of functioning effectively over an extensive range of temperatures, suitable for numerous environments.

• Compatibility: Tailored for wires within the 22-18 AWG spectrum, granting versatility for multiple wiring needs.

Specification:
